Product Features:

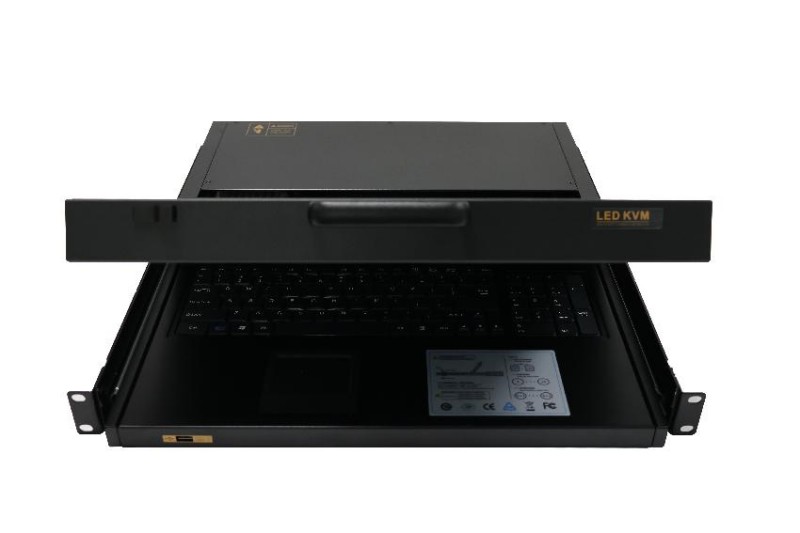

·Integrated 19 "LED screen/keyboard/mouse/switch four in one machine
·LCD display screen adjustment function, rail with self-locking device
·Support local control, 1000M Internet IP remote control
·Pull out installation design, adjustable length to accommodate various cabinet spaces
·Supports Microsoft IntelliMouse (Pro), Optical, Mouse Man.
Wheel Mouse, Scroll Point, Serial Mouse, etc.
When switching computers, the original working state of the keyboard will be automatically recorded and stored.
The KVM OSD menu supports multiple language options.
Support iMAC powerMAC and Sun Micro systems on USB ports\
·Complete DDC2B function, able to detect screen model even without switching computers
·The Auto scan function enables KVM to automatically scan computers one by one.
Online support for software upgrade ports.
·Excellent video effects, with an optimal resolution of up to 1280 * 1024 60HZ
·KVM front USB interface, supporting wired and wireless mice

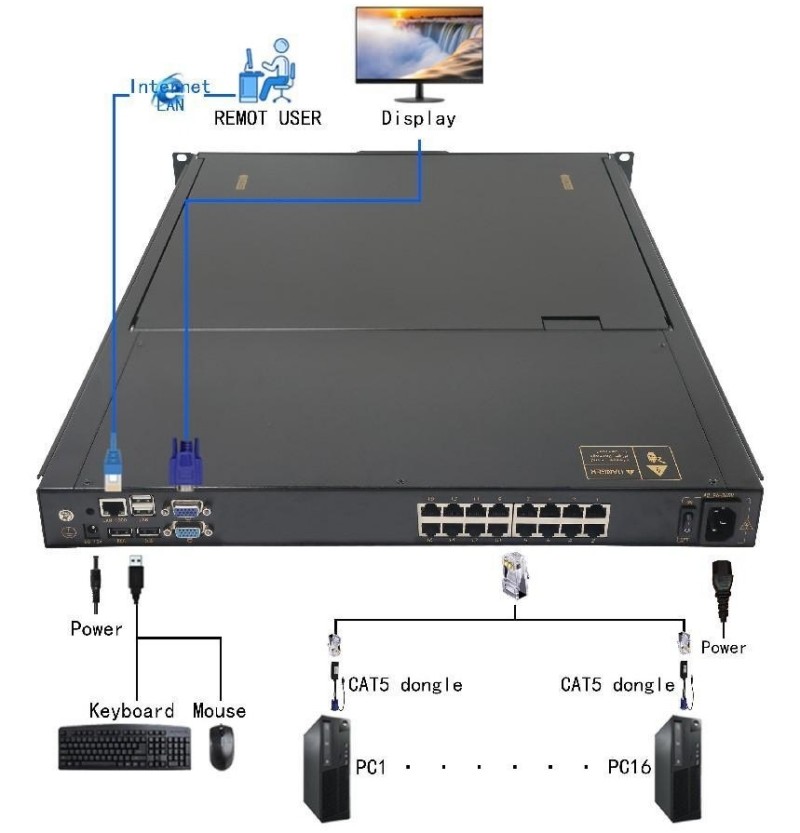

Can achieve cascading mode, connecting up to 256 computers for unified operation
·Support external authentication servers and unified management of user permissions
·Support security logs to record device switch events, user login, logout, network, etc
·Support SYSLOG event logs, which can directly point to SYSLOG servers
·System logs support SNMP protocol
·Support serial device management, serial adapter supports remote network and SSH protocol access
·Supports virtual media functionality and sound support
·Can be integrated with PDU remote power management solutions, providing a simple user interface for remote power control
·Support browser operation of KVM and connecting to its target server.
·Support local control port configuration and remote browser configuration KVM
·Can integrate SVC3000 management software and IV3 centralized control platform
·Supports multiple security authentication mechanisms: Hikauth, RSA, USBKEY, radius, LDAP, TACACS+
·Advanced security mechanisms include password protection and advanced encryption technology, with 128 bit AES data encryption supporting IP access control list filtering function
·Humanized design, one person can install and disassemble, improving the efficiency of administrators' work
·This series of KVM switches supports original servers with architectures such as Inspur, Dahua, Huawei, Shuguang, HP, DELL, Lenovo, as well as X86 and ARM industrial computers from Advantech, Advantech, and other series. It also supports various operating systems such as Kirin, Android, WinXP, LINUX, and Ubuntu.
·CAT5 module supports customized PS2+USB interface, HDMI&VGA interface
